Application：
NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.
NMD90 cables are available in two or three cores with an exposed ground conductor.

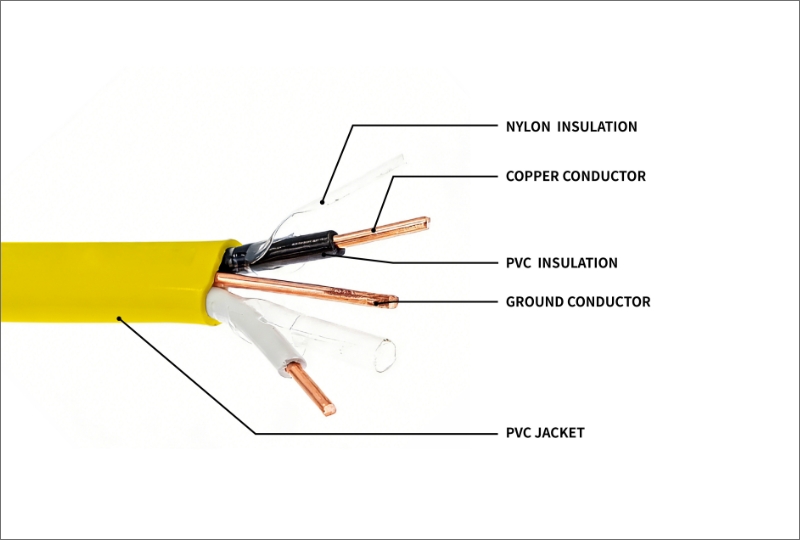

Construction：
Conductor
Bare copper per ASTM B3.
Sizes #14 AWG - #10 AWG are solid.
Sizes #8 AWG - #2 AWG are Class B; compressed stranded per ASTM B8
Insulation
All phases are insulated with Polyvinyl Chloride with Nylon Sheath
Jacket
PolyvinyI Chloride PVC
Applicable Standards：
ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
CSA C22.2 No. 48 non-metallic sheathed cable
ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
FT1 Flame Test (1,706 BTU/Hr nominal - Vertical Wire Flame Test)
Operating Temperature：
Rated at 90°C dry
Rated at -25°C
Operating Voltage：
300V
Identification：
Insulation in colors according to the manufacturing standard.
