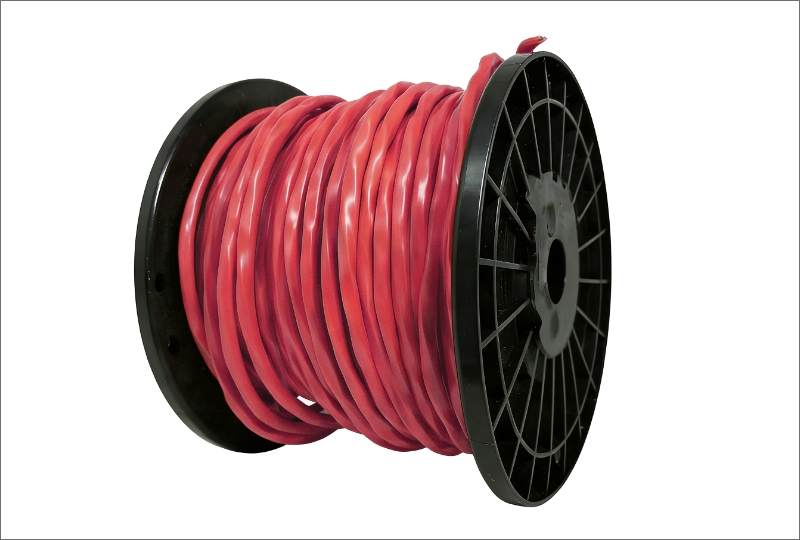

| CSA NMD 90 Copper Cable | ||
| Voltage: | 300V | |

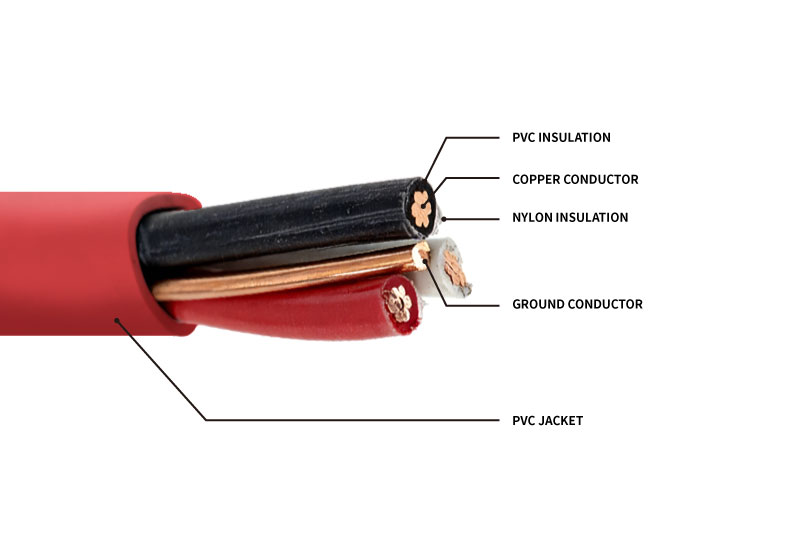

| Structure: | Conductor | Bare copper per ASTM B3. Sizes #14 AWG - #10 AWG are solid. Sizes #8 AWG - #2 AWG are Class B; compressed stranded per ASTM B8 |
| Insulation | All phases are insulated with Polyvinyl Chloride with Nylon Sheath | |
| Jacket | Polyvinyl Chloride PVC | |

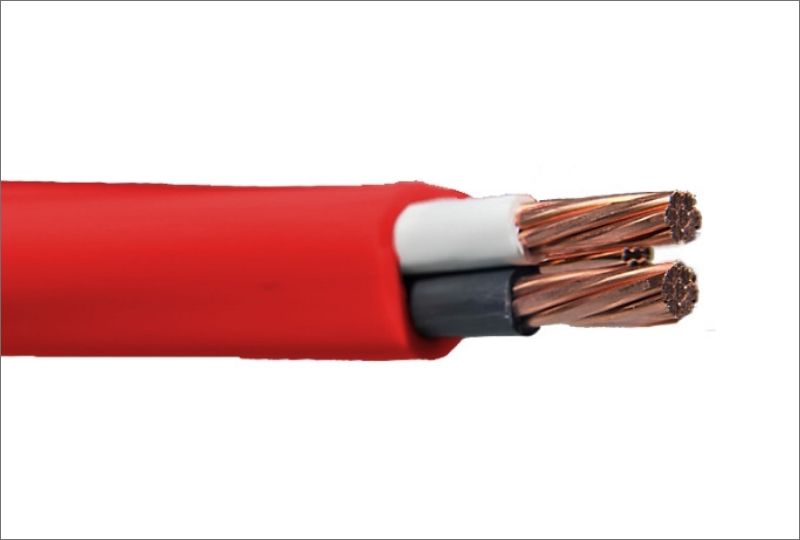

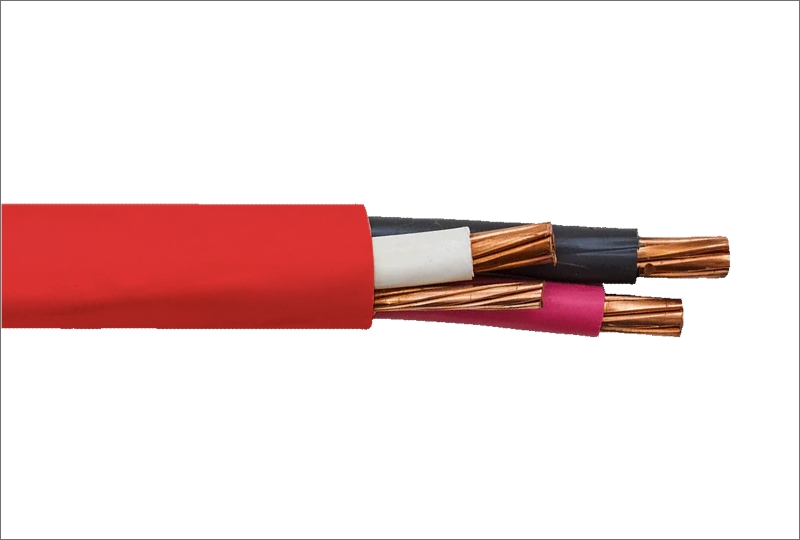

Colour Cod | 2/C: Black, White 3/C: Black, White, Red | |
NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or dampocations.
NMD90 cable is a non-metallic sheathed cable that conforms to Canadian CSA standards (and is UL certified in the United States) and is widely used in building electrical wiring.
Conductor
Bare copper per ASTM B3.
Sizes #14 AWG - #10 AWG are solid.
Sizes #8 AWG - #2 AWG are Class B; compressed stranded per ASTM B8
Insulation
All phases are insulated with Polyvinyl Chloride with Nylon Sheath
Jacket
PolyvinyI Chloride PVC
ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
CSA C22.2 No. 48 non-metallic sheathed cable
ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
FT1 Flame Test (1,706 BTU/Hr nominal - Vertical Wire Flame Test)
Rated at 90C dry
Rated at-25C
300V
Insulation in colors according to the manufacturing standard.
| Stock Number | Cond. Size AWG/ Kcmil | Conductor Number | Diameter Over Conductor (inch) | Conductor Stranding | Thickness Insulation (mils) | Ground Size (No.xAWG) | Thickness Jacket (mil) | Approx. OD (inch) | Weight (lbs/1000ft) | Copper Weight Overall (lbs/1000ft) |
| 551373 | 14 | 2 | 0.064 | Solid | 35 | 1x14 | 30 | 0.196x0.396 | 37 | 69 |
| 672477 | 14 | 2 | 0.064 | Solid | 35 | 1x14 | 30 | 0.196x0.396 | 37 | 69 |
| 471748 | 14 | 2 | 0.064 | Solid | 35 | 1x14 | 30 | 0.196x0.396 | 37 | 69 |
| 471797 | 14 | 3 | 0.064 | Solid | 35 | 1x14 | 30 | 0.388 | 50 | 90 |
| 472308 | 12 | 2 | 0.08 | Solid | 35 | 1x14 | 30 | 0.213x0.430 | 51 | 88 |
| 471755 | 12 | 2 | 0.08 | Solid | 35 | 1x14 | 30 | 0.213x0.430 | 51 | 88 |
| 471805 | 12 | 3 | 0.08 | Solid | 35 | 1x14 | 30 | 0.428 | 72 | 118 |
| 471763 | 10 | 2 | 0.101 | Solid | 35 | 1x12 | 30 | 0.234x0.488 | 82 | 124 |
| 472316 | 10 | 2 | 0.101 | Solid | 35 | 1x12 | 30 | 0.234x0.488 | 82 | 124 |
| 471813 | 10 | 3 | 0.101 | Solid | 35 | 1x12 | 30 | 0.479 | 115 | 168 |
| 551038 | 8 | 2 | 0.141 | 7 | 40 | 1x10 | 45 | 0.316x0.694 | 133 | 210 |
| 471821 | 8 | 3 | 0.141 | 7 | 40 | 1x10 | 45 | 0.635 | 186 | 283 |
| 557881 | 6 | 2 | 0.177 | 7 | 50 | 1x8 | 45 | 0.374x0.800 | 213 | 339 |
| 471839 | 6 | 3 | 0.177 | 7 | 50 | 1x8 | 45 | 0.775 | 297 | 433 |
| 557727 | 4 | 2 | 0.225 | 7 | 50 | 1x8 | 60 | 0.839 | 311 | 463 |
| 557882 | 3 | 2 | 0.252 | 7 | 50 | 1x6 | 80 | 0.937 | 410 | 610 |
| 676254 | 3 | 3 | 0.252 | 7 | 50 | 1x6 | 80 | 1.029 | 574 | 822 |
| 557880 | 2 | 3 | 0.282 | 7 | 50 | 1x6 | 80 | 0.991 | 702 | 862 |
SOUTH CABLE is a company specializing in the research, development, manufacturing,and sales of high-end wire and cable products.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Wire, Cable
We have CSA and CUL certifications, We have Fifteen years of experience in design and development.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type:T/T,L/C,Money Gram,Western Union;Language Spoken:English,Chinese,French
Most quotes are returned within 24 hours
TEST
Tests are divided into routine tests, sampling tests and type test items.
routine tests: Tests carried out by the manufacturer on all manufactured lengths of finished cables toverify that all cables comply with specified requirements.Routine test items :Conductor resistance measurement, voltage test.
Sampling tests: Tests carried out by the manufacturer on specimens of finished cables or on certaincomponents taken from finished cables at specified frequencies to check whether the cables complywith specified requirements.
Sampling test items:Conductor inspection, dimensional inspection,thermal extension testing ofinsulation and elastomer sheaths.
Type test：Tests carried out on normal commercial principles before supply of a type of cable covered by this standard to demonstrate that the cable has satisfactory performance under the conditions of intended use.
Type testing includes electrical type testing and non-electrical type testing items.
Electrical type test items:1) Insulation resistance measurement at ambient temperature.2) Measurement of insulation resistance at maximum conductor temperature during normal operation.3) 4h voltage test.
Non-electrical type test items include insulation non-electrical type test and sheath non-electrical type test.
Insulation non-electrical type test items: Dimensional measurements、mechanical properties(tensile strength and Elongation at break)、High temperature pressure test、Low temperature performance、Thermal shock test、Thermal extension test and water absorption test, etc.
Sheath non-electrical type test items：Dimensional measurements、mechanical properties(tensile strength and Elongation at break)、High temperature pressure test、Low temperature performance、Weight loss test and thermal shock test, etc.
