| NMD 90 Aluminum Cable 300V | ||
| Voltage: | 300V | |
| Structure: | Conductor | Stranded AA-8000 Series Aluminum Alloy (ACM) |
| Insulation | Cross-linked Polyethylene (XLPE) | |
| Jacket | Polyvinyl Chloride (PVC) | |

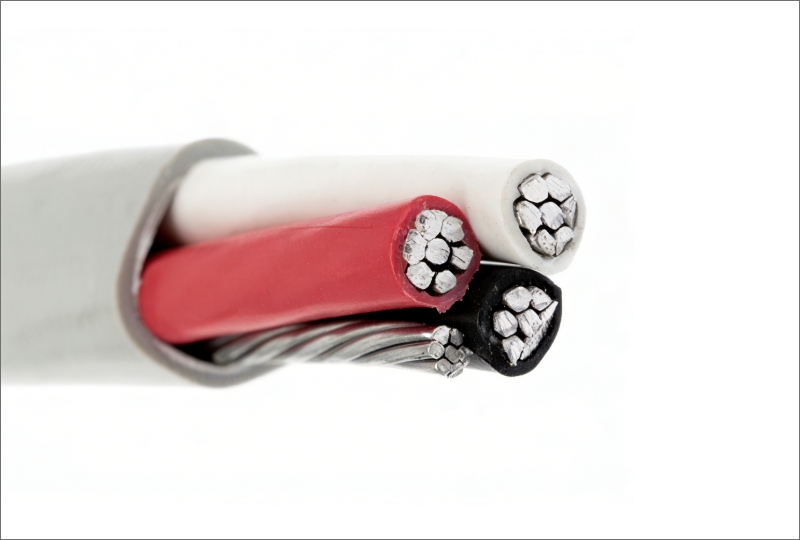

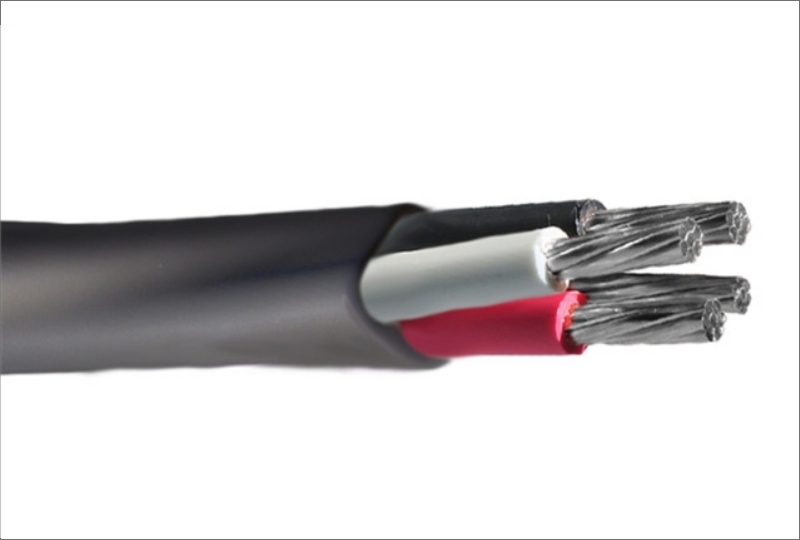

Colour Cod | 3 Core: Black, White, Red | |
NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or dampocations.
NMD90 cable is a non-metallic sheathed cable widely used in electrical wiring in residential and light industrial buildings.

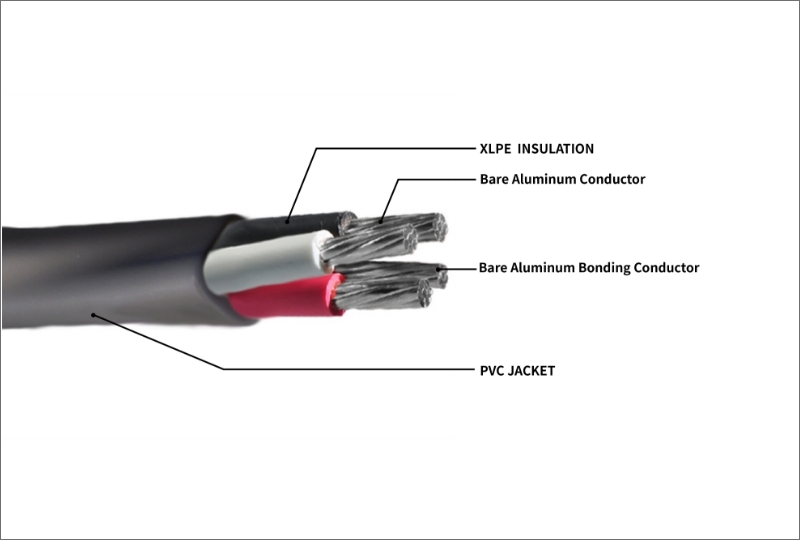

Conductor
Stranded AA-8000 Series Aluminum Alloy (ACM)
Insulation
Cross-linked Polyethylene (XLPE)
Bonding Conductor
Stranded AA-8000 Series Aluminum Alloy (ACM)
Cable Assembly
All conductors are cabled together
Jacket
PolyvinyI Chloride PVC
CSA C22.2 No. 48, Nonmetallic sheathed cable
CSA C22.2 No. 38, Thermoset-insulated wires and cables
CSA C22.2 No. 2556, FT1 Vertical Propagation Flame Test
Rated at 90°C dry
Rated at -25°C
300V
Insulation in colors according to the manufacturing standard.
Power Conductor | Bonding Conductor | Insulation Thickness | Jacket Thickness | Cable Overall Diameter | Cable Weight | Ampacity | |||||
Conductor Count | AWG | AWG | in | mm | in | mm | in | mm | lbs | kg | A |
8 | 10 | 10/1 | 0.045 | 1.14 | 0.045 | 1.1 | 0.535 | 13.6 | 123 | 183 | 45 |
6 | 8 | 10/1 | 0.045 | 1.14 | 0.045 | 1.1 | 0.651 | 16.5 | 183 | 272 | 55 |
4 | 6 | 8/7 | 0.045 | 1.14 | 0.060 | 1.5 | 0.776 | 19.7 | 275 | 409 | 75 |
2 | 6 | 8/7 | 0.045 | 1.14 | 0.080 | 2.0 | 0.936 | 23.8 | 404 | 601 | 100 |
SOUTH CABLE is a company specializing in the research, development, manufacturing,and sales of high-end wire and cable products.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Wire, Cable
We have CSA and CUL certifications, We have Fifteen years of experience in design and development.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type:T/T,L/C,Money Gram,Western Union;Language Spoken:English,Chinese,French
Most quotes are returned within 24 hours
TEST
Tests are divided into routine tests, sampling tests and type test items.
routine tests: Tests carried out by the manufacturer on all manufactured lengths of finished cables toverify that all cables comply with specified requirements.Routine test items :Conductor resistance measurement, voltage test.
Sampling tests: Tests carried out by the manufacturer on specimens of finished cables or on certaincomponents taken from finished cables at specified frequencies to check whether the cables complywith specified requirements.
Sampling test items:Conductor inspection, dimensional inspection,thermal extension testing ofinsulation and elastomer sheaths.
Type test：Tests carried out on normal commercial principles before supply of a type of cable covered by this standard to demonstrate that the cable has satisfactory performance under the conditions of intended use.
Type testing includes electrical type testing and non-electrical type testing items.
Electrical type test items:1) Insulation resistance measurement at ambient temperature.2) Measurement of insulation resistance at maximum conductor temperature during normal operation.3) 4h voltage test.
Non-electrical type test items include insulation non-electrical type test and sheath non-electrical type test.
Insulation non-electrical type test items: Dimensional measurements、mechanical properties(tensile strength and Elongation at break)、High temperature pressure test、Low temperature performance、Thermal shock test、Thermal extension test and water absorption test, etc.
Sheath non-electrical type test items：Dimensional measurements、mechanical properties(tensile strength and Elongation at break)、High temperature pressure test、Low temperature performance、Weight loss test and thermal shock test, etc.
